Chute feeder

  • Cylinder capacity:
  • The chute feeder is widely used in metallurgy,mining,construction,mineral processing,coal and other industries.The bulk materials are transported from storage silo to receiving device.
  • Processing capacity:
  • The chute feeder is widely used in metallurgy,mining,construction,mineral processing,coal and other industries.The bulk materials are transported from storage silo to receiving device.
  • Applied material:
  • The chute feeder is widely used in metallurgy,mining,construction,mineral processing,coal and other industries.The bulk materials are transported from storage silo to receiving device.

Product Description

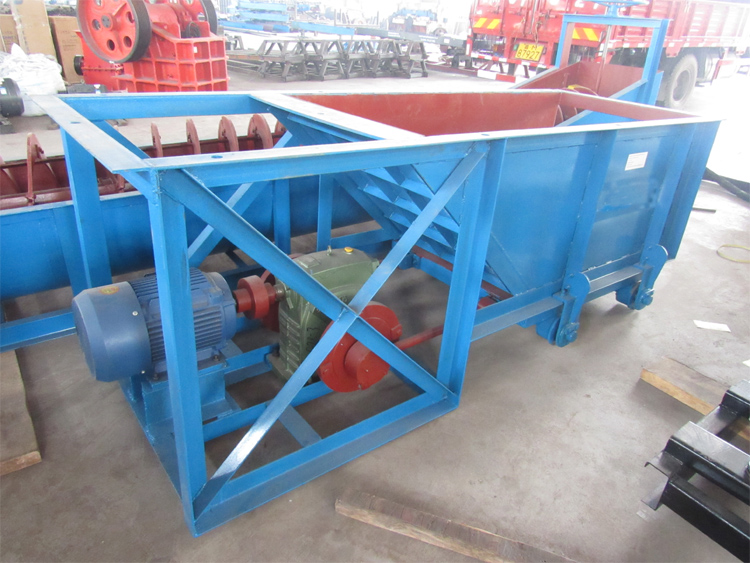

Chute feeder is widely used in the mining line.It is generally installed in front of the primary crusher,It can send big ore to crusher evenly and continuously.Chute feeder can effectively control the feeding capacity to match with the capacity of the whole crushing paint. chute feeder

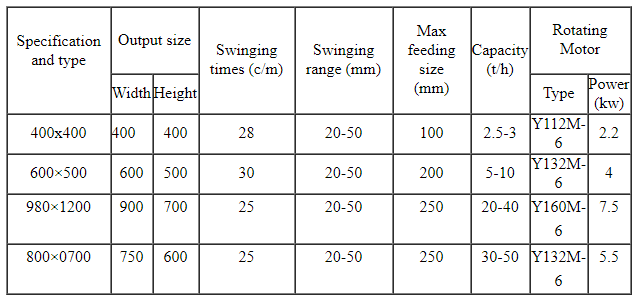

Technical Parameter

chute feeder

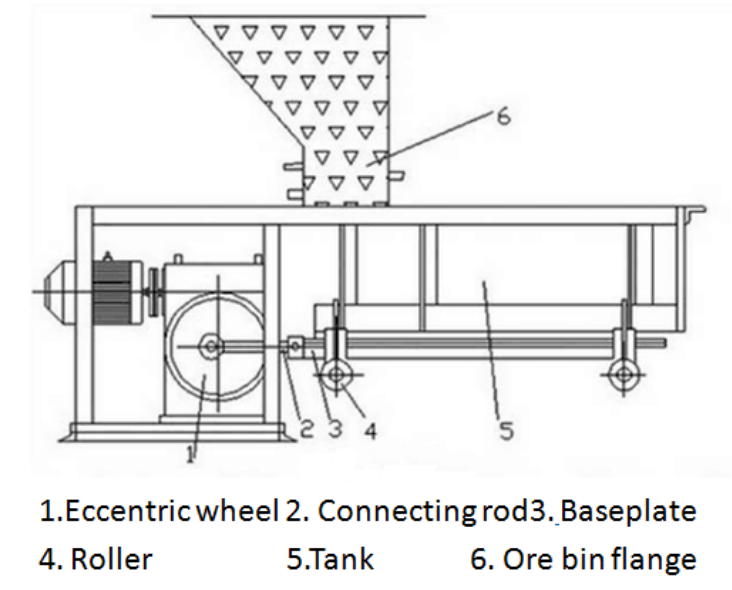

Working principle

The machine is usually installed underneath the discharging opening of ore bin. Minerals fall on the bushing. The bushing is located at the chute bottom, configured on idler wheel and via eccentric device connected with reducer which is linked to electric motor by coupler. When it works, electric motor drives reducer via coupler; eccentric disk and drain cap which is situated between chute frame bottom and roller begin to do reciprocal and linear motion so as to uniformly feed minerals chute feeder

Advantages

High-efficiency. Easy adjustment equipment. Low consumption, energy saving. Reasonable design. Low power consumption chute feeder.

Application

The chute Feeder is suitable for concentrating, coal, chemical and other industry departments, the granular and piece materials are carried into different set from the storage bin, but not suitable for carrying the concentrate power and other power material.
