JIg machine

Cylinder capacity:
The jig machine is fixed sieve type, suitable for separating metal ores, such as tungsten, placer gold,tin, can be used for beneficiation of fine and coarse material, the maximum feeding size is 6 ~ 8mm, but in some cases separating placerg gold, maximum size of Gaoxuan jig machine is 15mm.
Processing capacity:
The jig machine is fixed sieve type, suitable for separating metal ores, such as tungsten, placer gold,tin, can be used for beneficiation of fine and coarse material, the maximum feeding size is 6 ~ 8mm, but in some cases separating placerg gold, maximum size of Gaoxuan jig machine is 15mm.
Applied material:
The jig machine is fixed sieve type, suitable for separating metal ores, such as tungsten, placer gold,tin, can be used for beneficiation of fine and coarse material, the maximum feeding size is 6 ~ 8mm, but in some cases separating placerg gold, maximum size of Gaoxuan jig machine is 15mm.

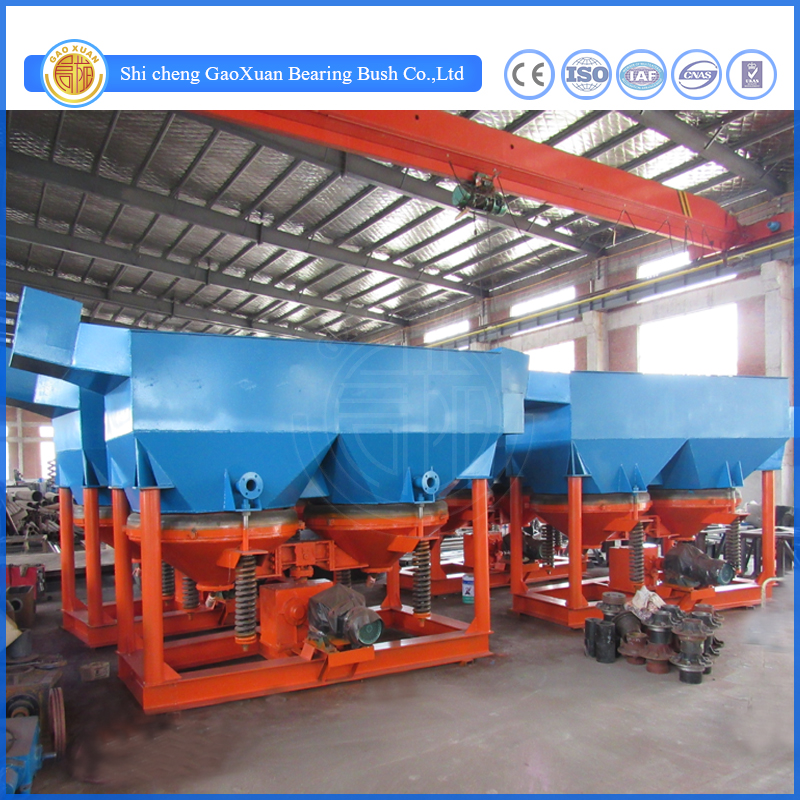

High Quality Gravity Concentrator Jig Machine

Product Description

Gold Mineral Jig Machine belongs to gravity-based equipments, which can separate mineral based on differing of specific gravity. saw-tooth wave jig is mainly consist of three parts: main frame, driving set and jigging chamber.It widely used in gravity concentration of tin, tungsten, placer gold, hematite ore, manganese, titanium, antimony, lead,tantalum, niobium and other minerals.

jig machine

Structure

Water and raw ore will be fed from one end of the jigger screen, the ore granules will move in the vertical alternative water-flows. Layers will be formed because of density difference of materials. The minerals with small density will be in the up layer and will flow together with the up pulp flow while material with bigger density will be in the down layer and will discharged from the down discharging port as jigger machine concentrate.

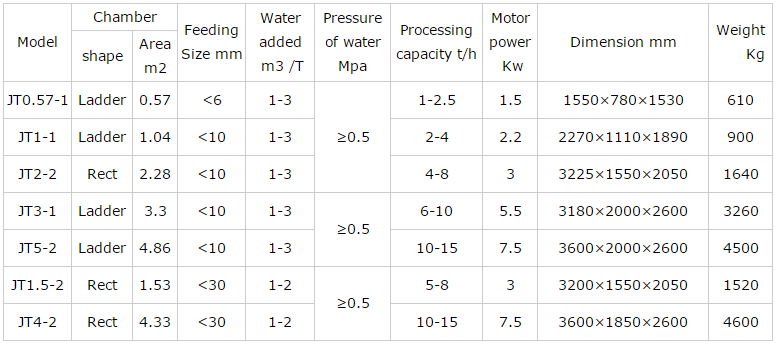

Technical Parameter

jig machine

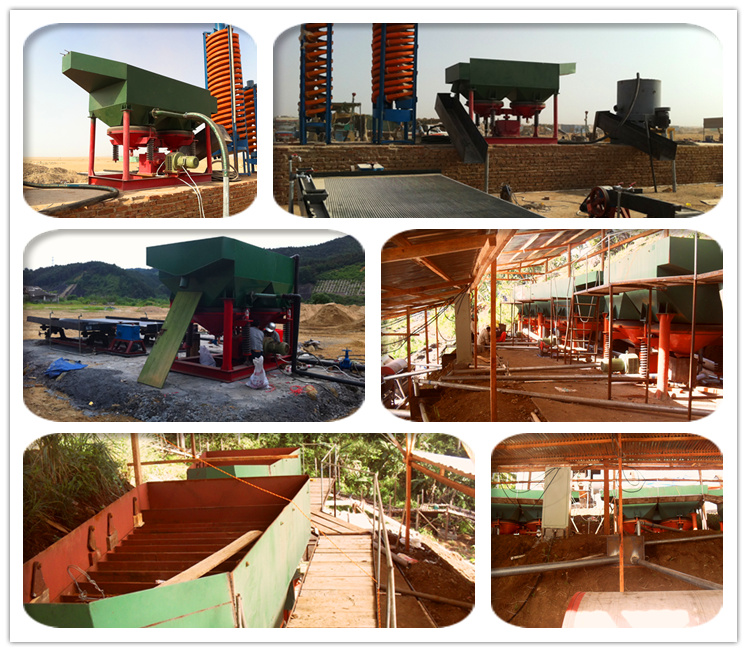

Application

Sawtooth wave mining jigger machine is one of the relative new methods for gravity concentration. As a rougher or cleaner device, it is widely applied on the separation of diamond,gold,tungsten,iron,tin,hematite, coal, tantalum niobium,titanium,manganese,barite, zirconium,chrome,gemstone and other minerals due to its high processing capacity, large range of separation size and simplicity of operation and maintenance.

jig machine
