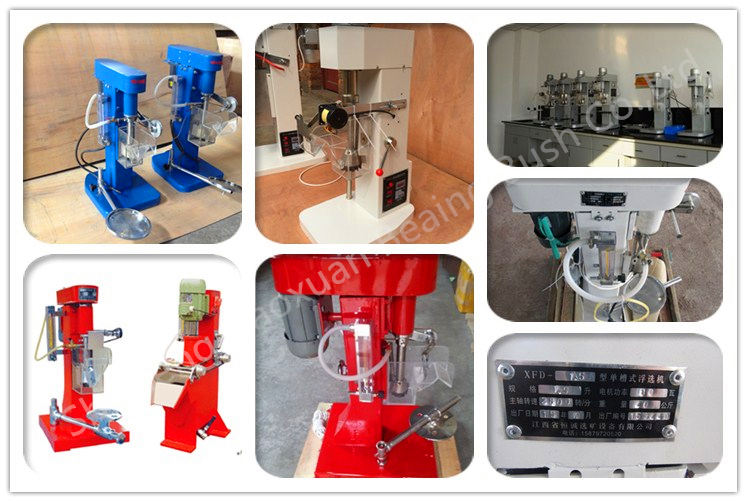

Product Description

Laboratory flotation cell mainly composes of the following parts: Body, main shaft subassembly, scraper subassembly, trough, and glass rotameterThe working power and voltage of XFD single-trough flotation machine is AC 220V.

Feature

1.Each chute has three functions in one,which can inhale gas,sink magma and separate. 2.It can contstitutes a flotation circuit itself 3.There is no need for installing any accessory equipment. 4.Horizontal arrangement makes it easy to change the flow chart. 5.The cycling way of slurry is very reasonable,so it can reduce the impurities to a great extent.

Structure

The XFD laboratory flotation machine consists the main parts as bellow:

1. Machine base; 2. Supporting board; 3. Cell;
2. Mix impeller; 5. Scraper; 6. Main shaft; 7. Cover; 8. Motor; 9. Flow meter;
3. Switch; 11. Switch of scraper; Mineral separation laboratory Flotation Cell, Copper ore Flotation machine for lab All the parts has been tightened in the main body, the shaft is turned in clockwise. The scraper could get three different speeds by changing different belt; the scraper is driven by motor through belt pulley, and the height could be adjusted by adjusting the butterfly nut.

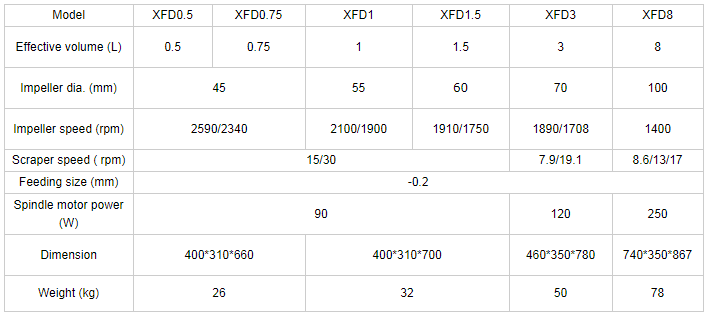

Technical Parameter

Application

Laboratory flotation machine, XFD single flotation cell is always used in geology, metallurgy, building materials, chemical and other industrial laboratory to floated small amount of ore samples.
